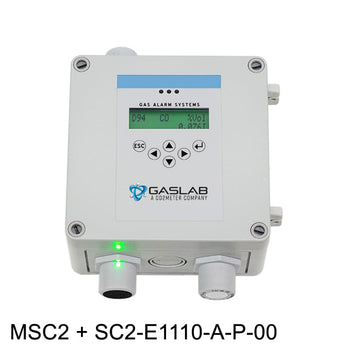

Fixed Carbon Monoxide (CO) Gas Detector (0-50ppm)
The Fixed Carbon Monoxide Gas Detector is designed to protect individuals near toxic and combustible gases, refrigerants, or oxygen in commercial and industrial applications. This fixed gas safety monitor measures CO levels between 0-50ppm and detects hazards in order to protect facilities from overexposure.Fixed carbon monoxide gas detectors are critical in automotive, agriculture, industrial, manufacturing and research applications - or anywhere CO is being used, stored, or produced.
Features
- Modular easy-to-use design
- 1-3 gas sensor capabilities
- 3 configurable relays
- 2 sensors max may be different sensors of the SC2 series, max 3 of them analog with 4-20 mA signals
- Custom configuration dependent upon location and application
- Warning buzzer/LED alarm, fault + operation option
- Compatible with a wide range of BMS
- Protocol for DGC-06 or Modbus protocol
- Operating voltage input 100-240 VAC or 24VDC
Specifications
- Measurement Range: 0-50ppm
- Gas Type: Carbon Monoxide
- Housing Type C/E: Polycarbonate
- Installation: Wall Mounted
- Knockouts for Cable Entry: Standard 6x M20/25
- Ingress Protection: IP65
-
Temperature Range: -13°F to 140°F (-30°C to 50°C)
- Humidity Range: 15-90% RH non-condensing
- Storage Temperature: -4°F to 149°F (0° to 20°C)
- Power Supply: 100-240 VAC or 24VDC
- Power Consumption: 24 V DC | Max. 60 mA (1.5 VA), w/ sensor, w/o WAO
- Alarm Relay (3): 5 A Dry Contact Configurable
- Transistor Output (2): 24 V DC/0.1 A
- Analog Input (2/3): 4-20mA, overload and short-circuit proof, input resistance 130 proportional, overload and short-circuit proof, load ≤ 500 4–20 mA = measuring range
-
Analog Output Signal (1):
- 2.4–< 4 mA = tolerable under range
- 20–21.2 mA = tolerable over range
- ≥ 21,2 mA= error over range
- ≤ 2,0 mA = fault
- Dimensions: 5.12 x 5.12 x 2.95 in. (130 x 130 x 75 mm)
- Weight: 1.32 lbs. (0.6 kg)
Warranty
- 1 year - See CO2Meter Terms and Conditions
Options
- SC2-E1110-A-P-00 | CO Digital Sensor for MSC2
- SC2-E1130-B-P-00 | NO2 Digital Sensor for MSC2
- SC2-E1194-A-P-00 | H2 Digital Sensor for MSC2
- SC2-E1195-A2-P-00 | O2 Digital Sensor for MSC2
- SC2-I464-B-P-00 | CO2 Digital Sensor for MSC2
-

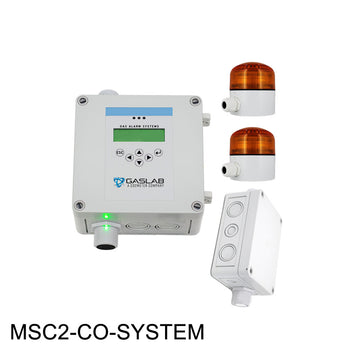

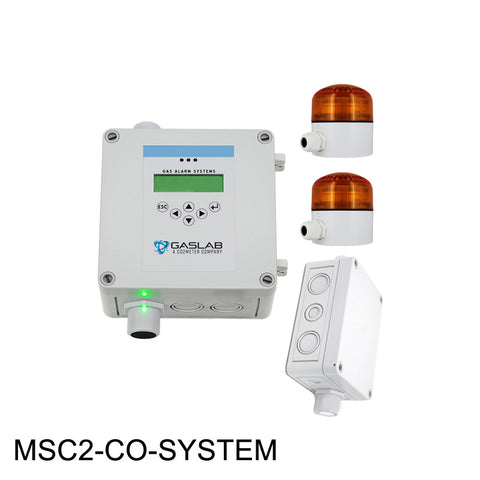

MSC2-C-53432320A | Gaslab Fixed Multi- Gas
Detector - w/ visual and audible
