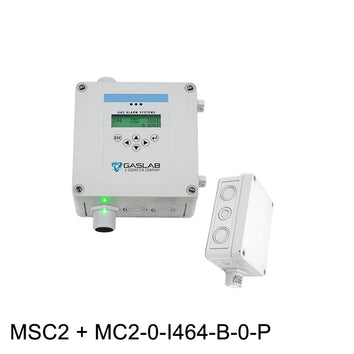

Carbon Dioxide (CO2) Fixed Gas Detector w/ Remote Sensor (0-5%)
The Carbon Dioxide (CO2) Fixed Gas Detector w/ Remote Sensor (MSC2 + MC2-0-I464-B-0-P) is designed to protect individuals near toxic gases like carbon dioxide in commercial and industrial applications. This fixed gas safety monitor measures 0-5% CO2 levels and detects hazards in order to protect facilities from overexposure.Features
• Modular easy-to-use design, 1-3 gas sensors
• Custom configuration dependent upon application
• Warning buzzer/LED alarm, fault + operation option
• Includes Remote Sensor
• Compatible with a wide range of BMS
• 3 configurable relays
• 2 digital/analog sensor inputs (configurable)
• Protocol for DGC-06 or Modbus protocol
• Operating voltage input 100-240 VAC or 24VDC
Specifications
- Measurement Range: 0-5%
- Gas Type: Carbon Dioxide
- Housing Type C/E: Polycarbonate
- Installation: Wall Mounted
- Knockouts for Cable Entry: Standard 6x M20/25
- Ingress Protection: IP65
-
Temperature Range: -13°F to 140°F (-25°C to 60°C)
- Storage Temperature: -4°F to 149°F (-20°C to 65°C)
- Humidity Range: 15-95% RH non-condensing
- Power Supply: 100-240 VAC or 24VDC
- Power Consumption: 24 V DC | Max. 60 mA (1.5 VA), w/ sensor, w/o WAO
- Alarm Relay (3): 5 A Dry Contact Configurable
- Transistor Output (2): 24 V DC/0.1 A
- Analog Input (2/3): 4-20mA, overload and short-circuit proof, input resistance 130 proportional, overload and short-circuit proof, load ≤ 500 4–20 mA = measuring range
-
Analog Output Signal (1):
- 2.4–< 4 mA = tolerable under range
- 20–21.2 mA = tolerable over range
- ≥ 21,2 mA= error over range
- ≤ 2,0 mA = fault
- Dimensions: 5.12 x 5.12 x 2.95 in. (130 x 130 x 75 mm)
- Weight: 1.32 lbs. (0.6 kg)
Warranty
- 1 year - See CO2Meter Terms and Conditions
