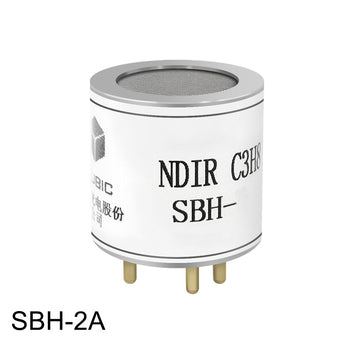

SBH-2A Cubic 2% Propane Sensor
The SBH-2A NDIR Propane Gas Sensor by Cubic detects 0-2% levels of C3H8 propane gas in ambient environments.
Features
- Measures 0 to 2% Propane by volume
- Full range linearized and digital signal output
- Shock-resistant, long-life NDIR sensor
- Reference channel for self-compensation
- Build-in temperature and humility compensation to ensure accuracy
- High humidity alert mechanism, reliable fail-safe operation
- Auto zero-calibration mechanism available
- Fast response, no moving parts, high stability, anti-corrosion
- Meet the explosion-proof level Ex ia IIC T4 Ga, certification No. GYB19.1789
- Life expectancy > 10 Years
Applications
- Mine, metallurgy, oil & gas
- Gas leak alarms
- LPG leak monitoring
- Liquefied gas station
- Fuel gas transport
Models
SBH-2A CH Sensor 0-2%Vol Propane gas sensor.
Specifications
- Measuring Gas: Propane
- Sensing Method: NDIR
- Measurement Range: 0-2% Vol
- Measurement Resolution: 0.01%
- Accuracy: < 0.1% Vol
- Rate of Measurement: 1 sec
- Warm-up time: < 10 sec
- Response Time T90: < 25 sec
- Zero Repeatability: ± 1% at FS
- Zero Drift: 2% FS/month
- Working Temperature: -40° ~ 70°C (-40°F-158°F)
- Working Humidity: 095% RH (Non-condensing
- Storage Temperature: -40° ~ 85°C (-40°F-185°F)
- Working Voltage: 3.3-6VDC
- Working Current: 55-60mA
- Peak Current: 360-400mA @ 5VDC
- Working Pressure: 30~130kPa
- UART Settings: 9,600, 8,N,1
- UART Output: 2.5-3.3V UART-TTL
- Analog Output: 0.4V-2VDC
- Dimensions: 20x19mm (0.79x0.75in)
- Body Material: Stainless Steel
- Weight: 18g
- Output footprint: 5 pins
- Sensor Life Span: > 10 years
- Ex-proof Level: Ex ia IIC T4 Ga GYB19.1789
Warranty
- 90 Days. See GasLab Terms and Conditions.
Sensor Pin Sockets - Manufacturers do not recommend soldering to the pins. Pin sockets can be purchased from Andon Electric. Click here to see the PDF of all Cubic sensors pin sockets available.
