TecPen MAP Oxygen Analyzer

TecPen MAP Oxygen Analyzer
Regular price $2,599.00 USD

POs or wholesale quantity discounts click here

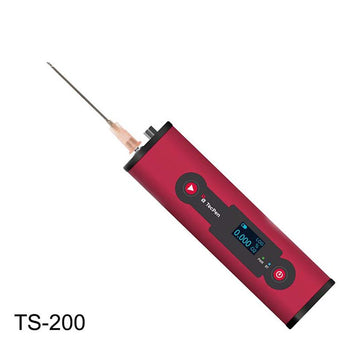

The TecPen MAP (modified atmosphere packaging) Handheld Oxygen Analyzer is designed to provide accurate oxygen level measurements in pierceable, shrink-wrapped, vacuum packed, or vacuum-sealed food packaging, infusion containers and micro-bioreactors. It is most commonly used for modified atmospheric packaging gas testing or as a headspace oxygen analyzer for spot testing.

Because of it's advanced optical chemical sensor, the TecPen MAP Oxygen Analyzer can take a measurement in 3 seconds and is designed to last for years.

Features

  • Long-life optochemical oxygen sensor
  • Measurements in 3 seconds
  • Data can be logged and downloaded via USB
  • Industry-standard .CSV data files
  • Rechargeable battery up to 300 measurements per charge
  • Pre-calibrated at factory for dependable use
  • No cross-sensitivity to CO2, H2S, ionic strength, flow

Applications

  • Modified atmospheric packaging (MAP) QC
  • Pharmaceuticals and biotechnology
  • Hygiene detection (pathogenic), microorganism growth
  • Biochemical and molecular biology research
  • Sterile packaging, desiccant validation
  • Cell culture vessels, Infusion containers
  • Micro-bioreactors

    Specifications

    • Measuring Range: 0.01-5% Vol.%
    • Accuracy: 0-2% - ±2% Mv* or 2-5% - ±3% Mv*
    • Resolution: 0.05
    • Response Time at 25°C: <150ms
    • Pump Flow max.: 67 mL
    • Temp. range Min/Max:  -10°C-60°C (14°F-140°F)
    • Lifetime of sensor cap: 2 years @ protective atmosphere; 0- 40°C
    • Power Supply: 5V USB and LiPo Battery
    • Rechargeable battery: > 3 hours per charge
    • Data Interface: USB
    • Temperature Compensation: 10-30°C (50°F-86°F)
    • Display: OLED
    • Cleaning: no organic solvents, 40% EtOH
    • Parts in Contact with Sample: St.1.4404/PTFE/Glass
    • Connection: USB
    • Case: Anodized Aluminum
    • Protection: IP65
    • Manufacturer service interval: 3 years
    • Sensor cap replacement interval: 2 years
    • Recommended customer calibration interval: 6 months

    TecSense sensors are CE, FCC, IC, KC and MIC marked, meet the requirements of ASTM F2714-08, and the European and Canadian standards for food safety. The company is DIN ISO 9001/2015 certified.

    Warranty

    • 1 year on TecPen, 3 months on sensor cap. See GasLab Terms and Conditions.

    Accessories

    • TS R1 HH 001 - particulate filters
    • TS R1 HH 006 - septum 12 dots
    • TS R1 HH 007 - flexible extension
    • TS R1 HH 008 - needle 25/0.8
