Sensor Tube Cap Adapter
The tube cap adapter easily converts any industry standard 20mm gas sensor from diffusion to sampling sensors. Molded polymer grips sensor for easy fit and removal while maintaining a good seal.
We offer 3 gas in-out tube caps for all our 20mm gas sensors and 2 custom gas in-out tube caps for sensors that have barometric pressure, temperature, and % relative humidity sensors on our latest generation MX boards.
Models for all 20mm Sensors

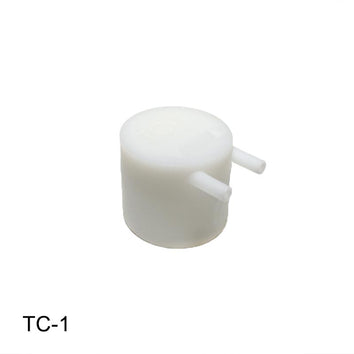

- TC-1 - 3 mm side mounted ports
- TC-2 - 3 mm top mounted ports
- TC-3 - 4.5 mm top mounted ports
Works with:
- AlphaSense O2-A2 Oxygen Sensor AP-0001
- AlphaSense O2-A3 Oxygen Sensor AP-0004
- AlphaSense CO-AF CO Sensor AP-0005
- AlphaSense COH-A2 Dual Gas Sensor AP-0011
- AlphaSense H2S-A1 Hydrogen Sulfide Sensor AP-0006
- AlphaSense CH-A3 Pellistor Sensor AP-0012
- Cubic SJH Series Methane Sensor CU-1000
- ExplorIR®-W 5% CO2 Sensor GC-0015
- ExplorIR®-W 20% CO2 Sensor GC-0006
- ExplorIR®-W 100% CO2 Sensor GC-0016
- Luminox LOX-02 Oxygen Sensor OX-0052
- Oxygen O2 Transmitter TX-1
- SprintIR®-W 100% CO2 Sensor GC-0018
Models for Sensor on MX Board
- TC-4 - 3 mm side mounted ports away from sensor
- TC-5 - 3 mm side mounted ports towards sensor
Works with:
- LuminOX LOX-02 25% Oxygen Sensor Devkit
- ExplorIR®-M 5% CO2 %RH/T Hg Sensor
- ExplorIR®-M 20% CO2 %RH/T Hg Sensor
- ExplorIR®-M 100% CO2 %RH/T Hg Sensor
Warranty
- 1 Year. See GasLab Terms and Conditions.
Tube cap adapters easily convert 20mm standard gas sensors from diffusion to sampling sensors. But to uses them you'll need tubing, moisture traps and micro pumps to pull the gas across the sensor. We offer everything you need below to create a full bench-top gas sampling setup.
Micro-Pump Kit Our most popular option - includes all the tools you need to utilize the tube-cap adapters as part of a sampling sensor system.
Nafion tubing is a highly selective, semi-permeable membrane to water vapor. If gases inside Nafion tubing are wetter than gases surrounding the tubing, drying will occur. If the surrounding gases are wetter, humidification will occur.
Micro gas sampling pumps provide a constant flow of air across the sensor with a tube cap - perfect for bench-top testing of sensors for closed-loop sampling applications or if you need a longer-lasting or higher volume pump.
